EMD SD60 DIESEL-ELECTRIC LOCOMOTIVE

The EMD SD60 is a 3,800 horsepower (2,800 kW), six-axle diesel-electric locomotive built by General Motors Electro-Motive Division, intended for heavy-duty drag freight or medium-speed freight service. It was introduced in 1984, and production ran until 1995.

History and development

The SD60 is essentially identical to the SD50 externally, but has a different prime mover, the new 16-cylinder EMD 710G3A, and a computer-controlled electrical system. Chicago & North Western's railroad manual estimated that the SD60 is 3% more fuel efficient than one SD50, while a pair of SD60s was up to 16% more efficient than three SD40s pulling a standard coal train.

Norfolk Southern has been modernizing their old SD60s since 2010 into SD60Es, a model specific to NS.

Models

Several variants of the SD60 were built, including:

SD60
This was the original model, and had a conventional hood unit configuration with the 40 Series (spartan) cab first employed on the SD40-2.

SD60F

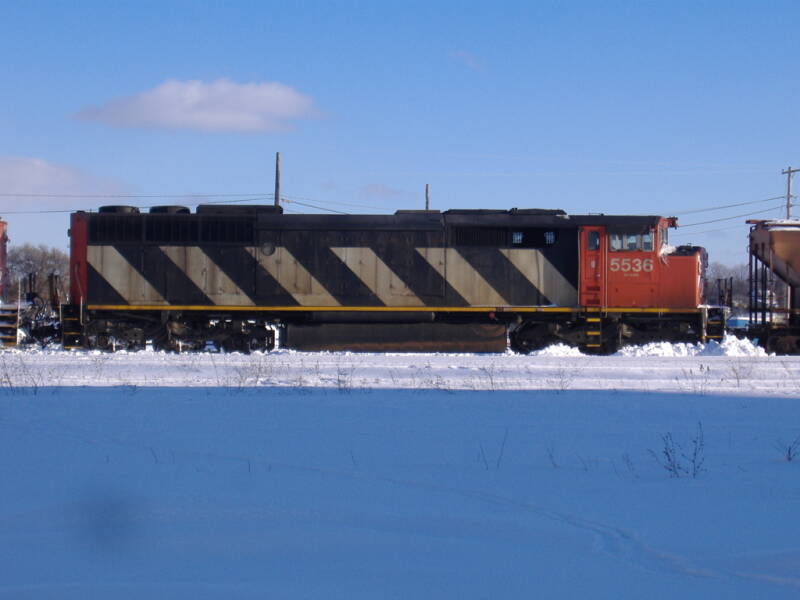

The SD60F was ordered and was operated by Canadian National and has a full-width cowl body and crashworthy "safety cab" with a four-piece windshield. CN retired the SD60F in 2017, however a handful were sold off and are still working on two shortlines in North Dakota. Dakota, Missouri Valley and Western Railroad has six, and the Northern Plains Railroad has five. 14 units are currently on the Aberdeen, Carolina & Western Railway in North Carolina.

SD60I
The SD60I model has a full-width short hood and features the so-called "WhisperCab" that was insulated from sound and vibration using a system of rubber gaskets. The same cab was later used on EMD's SD70I, SD75I, SD80MAC and SD90MAC locomotives. Only Conrail ordered this model, and after 1999 all were split between the Norfolk Southern and CSX. All SD60i locomotives have either have been scrapped, sold to new owners or retired.

SD60M
The SD60M features a "North American safety cab" design and has a full-width short hood. Early models until 1990 featured a three-piece windshield with vertical windows (nicknamed "triclops"), identical to the windshields found on EMD's SD40-2F and F59PH models. Later production from 1991 used two windshield panes that were sloped back, and had a somewhat shorter nose tapered on the sides. Purchasers of this model included Conrail, Union Pacific, Burlington Northern and the Soo Line Railroad. Conrail orders were split between the Norfolk Southern and CSX back in 1999. All Norfolk Southern and CSX SD60M locomotives have either been scrapped, sold to new owners, or retired.

SD60MAC
The SD60MAC is similar to the SD60M but is equipped with alternating current traction motors. Although four demonstrator SD60MAC units tested on the Burlington Northern proved the viability of EMD's AC traction system, all subsequent orders were for the SD70MAC locomotive.

A Norfolk Southern EMD SD60E locomotive in Ayer, Massachusetts.

(4300streetcar, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons)

SD60E

The SD60E is a custom rebuild of standard cab SD60 for Norfolk Southern created at the Juniata Shops with the prototype being delivered in 2010 and the majority of the production taking place between 2013 and 2017. The SD60E utilizes a new NS-designed wide nose cab with increased crash protection, new electronics and up-rating the engine to the 4000 hp 710G3B standard. Norfolk Southern bought additional SD60s from Helm Leasing specifically for the SD60E program with the aim to eventually rebuild 240 SD60s, however the project was terminated after 135 had been completed and Norfolk Southern's remaining inventory of non-rebuilt SD60, SD60M and SD60I locomotives were subsequently sold or scrapped in 2019. In May 2021, Norfolk Southern regeared SD60E numbers 7034 and 7035 to go 79mph and assigned the locomotives to the railroad's Office Car Special train.

Current and original owners

EMD SD60

Preservation

In October 2019, Norfolk Southern donated SD60I No. 6721 to Penn State University Altoona, marking one of the first Conrail road locomotives to survive into preservation. It has moved to the Railroaders Memorial Museum as of 2023.

Overview

Type and origin
Power type: Diesel-electric
Builders: Electro-Motive Division (EMD) and General Motors Diesel (GMD)
Model: SD60
Build date: 1984–1995
Total produced: 1,144
Specifications
Configuration: AAR C-C
Gauge: 4 ft 8+1⁄2 in (1,435 mm) standard gauge; 5 ft 3 in (1,600 mm), Brazil
Wheel diameter: 40 in (1,000 mm)
Wheelbase: 13 ft 7 in (4.14 m)
Length: 71 ft 2 in (21.69 m)
Width: 10 ft 3 in (3.12 m)
Height: 15 ft 7.5 in (4.76 m)
Locomotive weight: 368,000 lb (166,922 kg)
Prime mover: EMD 16-710G3A
Engine type: V16 diesel
Alternator: AR-11
Traction motors: D-87
Cylinders: 16
Performance figures
Maximum speed: 70 mph (113 km/h)
Power output: 3,800 hp (2.8 MW) at 900 rpm
Tractive effort Starting: 114,000 lbf (52,000 kgf) @ 25%
Tractive effort Continuous: 100,000 lbf (45,359 kgf) @9.8 mph (15.8 km/h)
Career
Operators: See original owners
Locale: North America, Brazil
Disposition: Most still in service as of 2016, 1 preserved.

See Also:

EMD Diesel-Electric Locomotives

EMD History

Diesel-Electric Locomotives
