EMD GP7 DIESEL-ELECTRIC LOCOMOTIVE

The EMD GP7 is a four-axle (B-B) diesel-electric locomotive built by General Motors Electro-Motive Division and General Motors Diesel between October 1949 and May 1954.

The GP7 was the first EMD road locomotive to use a hood unit design instead of a car-body design. This proved to be more efficient than the car body design as the hood unit cost less to build, was cheaper and easier to maintain, and had much better front and rear visibility for switching. Power was provided by an EMD 567B 16-cylinder engine which generated 1,500 horsepower (1,119 kW). The GP7 was offered both with and without control cabs, and those built without control cabs were called a GP7B. Five GP7B's were built between March and April 1953.

Of the 2,734 GP7's built, 2,620 were for American railroads (including 5 GP7B units built for the Atchison, Topeka and Santa Fe Railway), 112 were built for Canadian railroads, and 2 were built for Mexican railroads.

This was the first model in EMD's GP (General Purpose) series of locomotives. Concurrently, EMD offered a six-axle (C-C) SD (Special Duty) locomotive, the SD7. The GP7 was replaced by the GP9 model in GM-EMD's GP sequence.



Aberdeen and Rockfish Railroad 205 at the company’s yard in Aberdeen, North Carolina.

(CZmarlin — Christopher Ziemnowicz, releases all rights, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)



History

ALCO, Fairbanks-Morse, and Baldwin had all introduced road switchers before EMD, whose first attempt at the road-switcher, the BL2 was unsuccessful in the market, selling only 58 units in the 14 months it was in production. Its replacement, the GP7, swapped the truss-framed stressed car body for an un-stressed body on a frame made from flat, formed and rolled structural steel members and steel forgings welded into a single structure (a "weldment"), a basic design which is still being employed today. In heavy service, the GP7’s frame would bow and sag over time. This defect was corrected in later models.

The GP7 proved very popular, and EMD was barely able to meet demand, even after opening a second assembly plant at Cleveland, Ohio. Later, locomotives in EMD's GP-series came to be nicknamed ‘Geeps’. Many GP7s both high and short-hood can still be found in service today on shortline railroads and industrial operators. Although most Class 1 roads stopped using these locomotives by the 1980s some remain in rebuilt form on some major Class I railroads, as switcher locomotives. The "GP" designation stood for "general purpose", while the "7" had no meaning other than matching the EMD F7 cab unit then in production.

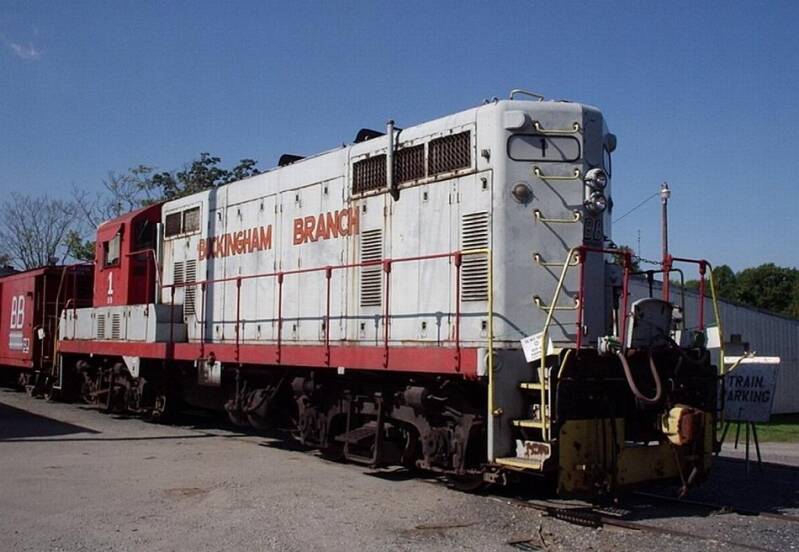

BBRR 1, a GP7, with the ODC special, Dillwyn, Virginia.

(William Grimes at English Wikipedia, Public domain, via Wikimedia Commons)



Identification

The GP7, GP9 and GP18 locomotives share a similar car-body that evolved over time. Most GP7s had three sets of ventilation grills under the cab (where the GP9 only had one), and two pair of grills at the end of the long hood (where only the pair nearest the end was retained on the GP9). However, some late GP7s were built with car-bodies that were identical to early GP9s. Early GP7s had a solid skirt above the fuel tank, while late GP7s and early GP9s had access holes in the skirt (see photo of Illinois Terminal 1605, top left). Many railroads later removed most of the skirt to improve access and inspection.

Locomotives could be built with the engineer’s control stand installed for either the long hood, or the short hood designated as the front. Two control stands for either direction running was also an option, but one end would still be designated as the front for maintenance purposes. The GP7 was also available with or without dynamic brakes, and a steam generator installed in the short hood was also an option. In the latter case, the 1,600-US-gallon (6,100 L; 1,300 imp gal) fuel tank was divided, with half for diesel fuel, and half for boiler water. One option available for locomotives without dynamic brakes, was to remove the two 22.5 in × 102 in (570 mm × 2,590 mm) air reservoir tanks from under the frame, and replace them with four 12 in × 150.25 in (305 mm × 3,816 mm) tanks that were installed on the roof of the locomotive, above the prime mover. These "torpedo tubes" as they were nicknamed, enabled the fuel and water tanks to be increased to 1,100 US gallons (4,200 L; 920 imp gal) each, although some railroads opted for roof-mounted air tanks and 2,200-US-gallon (8,300 L; 1,800 imp gal) fuel tanks on their freight ‘Geeps’.



Chicago and Eastern Illinois GP7 89 in MP paint scheme at Yard Center, Dolton, IL on December 22, 1969.

(Photo by Roger Puta, courtesy Marty Bernard, railfan 44, Public domain, via Wikimedia Commons)



Original buyers

Locomotives built by Electro-Motive Division, USA.

Owner Quantity Numbers Notes
Electro-Motive Division (demonstrator) 1 525 1350 hp GP7m; to Atchison, Topeka and Santa Fe 99, renumbered 2899. This unit was built with a 567BC engine.
Electro-Motive Division (demonstrator) 3 100 (ex-922), 200, 300 to Chicago & North Western 1518–1520
Aberdeen and Rockfish Railroad 1 205
Atchison, Topeka and Santa Fe 244 2650–2893 2855-2858 were built with 567C engines
Atchison, Topeka and Santa Fe 5 2788A–2792A GP7B; 2788A-2789A, 2791A-2792A were built with 567C engines
Atlanta and St. Andrews Bay 2 501–502
Atlanta and West Point Rail Road 5 571–575
Atlantic and East Carolina Railway 1 501 Renumbered 406.
Atlantic Coast Line Railroad 154 100-253
Baltimore and Ohio Railroad 33 720–731, 740–746, 910–922, 6405 728-729; 740-746 were built with 567BC engines
Bangor and Aroostook Railroad 16 560–575
Belt Railway of Chicago 8 470–477
Boston and Maine Railroad 23 1555–1577
Butte, Anaconda and Pacific Railway 3 101–103
Central of Georgia Railway 15 106–107, 120–132
Central Railroad of New Jersey 13 1520–1532
Atlantic Coast Line Railroad (Charleston and Western Carolina Railway) 21 200–220 To Atlantic Coast Line 254-274.
Chesapeake and Ohio Railway 180 5700–5719, 5739–5797, 5800–5900 5720–5738 built by GMD
Chicago and Eastern Illinois Railroad 30 203–232
Chicago and North Western Railway 110 1521–1550, 1556–1559, 1562–1599, 1601–1603, 1625–1659
Chicago and North Western (Chicago, St. Paul, Minneapolis and Omaha Railway—"Omaha Road") 11 151–161
Chicago, Burlington and Quincy Railroad 68 200–267 253-267 were built with 567BC engines
Chicago Great Western Railway 2 120–121
Chicago, Rock Island and Pacific Railroad 113 430–441, 1200–1237, 1250–1311, 1308 (2nd) 1294-1299 were built with 567BC engines
Clinchfield Railroad 17 900–916
Colorado and Wyoming Railway 2 103–104 Engines 103 & 104 are owned by the Pueblo Railway Foundation. Both locomotives are operable and used occasionally on Museum grounds .
Colorado Fuel and Iron 2 101–102 Engine 102 is owned by the Pueblo Railway Foundation. The locomotive is operable and used occasionally on Museum grounds.
Atlantic Coast Line Railroad (Columbia, Newberry and Laurens Railroad) 5 100–104 To Atlantic Coast Line 275-279.
Delaware, Lackawanna and Western Railroad 20 951–970 To Erie Lackawanna, 1270-1284, 1405-1409.
Denver and Rio Grande Western Railroad 14 5100–5113
Detroit and Toledo Shore Line Railroad 10 41–50
Detroit, Toledo and Ironton Railroad 24 950–973 964-973 were built with 567BC engines
Erie Railroad 52 1200–1246, 1400–1404 To Erie Lackawanna, same numbers.
Florida East Coast Railway 15 607–621
Georgia and Florida Railroad 6 701–706
Georgia Railroad 16 1021–1036 1035-1036 were built with 567BC engines
Great Northern Railway 56 600–655
Illinois Central Railroad 48 8800–8801, 8850–8851, 8900–8911, 8950–8981 8800–8801, 8900–8911 had steam generators
Illinois Terminal Railroad 6 1600–1605
Kansas City Southern Railway 8 155–162
Kansas City Southern (Louisiana and Arkansas Railway) 5 150–154
Kansas, Oklahoma and Gulf Railway 9 801–809
Louisville and Nashville Railroad 61 400–440, 500–514, 501–502 (2nd), 550–552
Maine Central Railroad 19 561–569, 571–580 566-569 were built with 567BC engines
Meridian and Bigbee Railroad 1 1
Midland Valley Railroad 4 151–154
Minneapolis, St. Paul and Sault Ste. Marie Railroad ("Soo Line") 7 375–378, 381–383
Missouri Pacific Railroad 208 4116–4194, 4197–4325 4116-4120, 4159-4165, 4203-4207, 4249-4253, 4284-4286, 4323-4324 owned by St. Louis, Brownsville and Mexico, 4121-4123, 4153-4158, 4197-4202, 4254-4255, 4287-4297, 4325 owned by International-Great Northern, 4290-4291, 4316-4320, 4325 were built with 567BC engines; 4292-4315, 4321-4324 were built with 567C engines.
Missouri–Kansas–Texas Railroad 33 1501–1529, 1761–1764 1700s had steam generators. Renumbered 91–123
Nashville, Chattanooga and St. Louis Railway 37 700–731, 750–754 700-705 built with EMD AAR TypeA trucks
Ferrocarriles Nacionales de México 2 6600–6601
New York Central Railroad 169 5600–5611, 5626-5675, 5686-5712, 5738-5817 long hood forward
New York Central Railroad (Peoria and Eastern Railway) 14 5612-5625 long hood forward
New York Central Railroad (Pittsburgh and Lake Erie Railroad) 35 5676-5685, 5713-5737 long hood forward
New York, Chicago and St. Louis Railroad ("Nickel Plate Road") 48 400–447
Northern Pacific Railway 20 550–569 to Burlington Northern Railroad 1624–1643; 560-569 were built with 567BC engines
Pennsylvania Railroad 66 8500–8512, 8545–8587, 8797–8806 long hood forward
Phelps Dodge Corporation 7 1–2, 7–8, 27–29
Portland Terminal Company [Maine] 1 1081
Reading Company 44 600–636, 660–666 625-636 were built with 567BC engines
Richmond, Fredericksburg and Potomac Railroad 4 101–104
Seaboard Air Line Railroad 123 1700–1822
Southern Railway 57 2063–2077, 2156–2197
Southern Railway (Cincinnati, New Orleans and Texas Pacific Railway) 11 6200–6205, 6240–6244
Southern Railway (Alabama Great Southern Railroad) 5 6540–6544
Southern Railway (Georgia Southern and Florida Railway) 4 8210–8213
St. Louis Southwestern Railway 1 320 Renumbered 304.
St. Louis–San Francisco Railway 129 500–549, 555–632, 615 (2nd)
Tennessee, Alabama and Georgia Railway 3 707–709
Texas and Pacific Railway 21 1110–1130
Texas Mexican Railway 3 850–852
Toledo, Peoria and Western Railway 2 102–103
Union Pacific Railroad 30 700–729 720-729 were built with 567BC engines
United States Army 20 1821–1840 Built with EMD AAR TypeA trucks; 12 later served on Alaska RR and 11 were retrucked with AAR Type B road trucks
Wabash Railroad 33 450–452, 454–483 453 built by GMD
Western Maryland Railway 4 20–23
Western Pacific Railroad 13 701–713
Western Railway of Alabama 6 521–526
Totals 2617 GP7
Totals 5 GP7B

Algoma Central 161 (GMDD GP7) in November 1978.

(Photo by Roger Puta, courtesy Marty Bernard, railfan 44, Public domain, via Wikimedia Commons)



GMDD Canada logo.

Locomotives built by General Motors Diesel, Canada

GP7 locomotives were built at GMD's London Ontario plant for domestic Canadian railway purchasers, and for some US railroads like the C&O and Wabash who owned and operated over trackage in Canada (specifically the southern Ontario area).

Owner Quantity Numbers Notes
Algoma Central and Hudson Bay 21 150–170
Canadian National Railways 25 4824, 7555–7578 4824 rebuilt October 1958 with parts from wrecked F3A. 7555-7578 renumbered to 4800-4823 mid-1957.
Canadian Pacific Railway 17 8409–8425 8410-8411 originally built with steam generators
Chesapeake and Ohio Railway 19 5720–5738 C&O 5720-5729 resold to NYC as 5818-5827 for their Canadian operations
Quebec North Shore and Labrador Railway 22 100–101, 104–123
Toronto, Hamilton and Buffalo Railway 7 71–77 To CP (minus wrecked 71), all rebuilt as CP 1682-1687
Wabash Railroad 1 453 Later to N&W 3453
Total 112

Chesapeake and Albemarle 2158 (an ex-ATSF GP7U) in Chesapeake, VA.

(William Grimes at English Wikipedia, Public domain, via Wikimedia Commons)



Rebuilds, modifications and conversions

There are five GP7s on A J Kristopan's EMD Serial number page that reused previous serial numbers: B&O 6405 (preserved), CRI&P 1308 (2nd), L&N 501 (2nd) and 502 (2nd), and SLSF 615 (2nd). These rebuilt units were rebuilt as new on new frames. Another rebuild by GMD is that CN 4824 was rebuilt as a GP7 with parts from an F3A in October 1958.

Over 100 GP7s and four of the GP7Bs were built with 567BC or 567C engines starting in March 1953 through May 1954. These are noted on the roster above.

Many railroads rebuilt their GP7s with low short hoods; some railroads went further in their rebuilding than others. Missouri Pacific Railroad upgraded their GP7s with 567BC engines (a B-block upgraded to C-block specs) and replaced the standard EMD 2-stack exhaust with a 4-stack "liberated" exhaust, raising their power output to 1,600 horsepower (1.19 MW).

Illinois Central Railroad rebuilt most of its GP7s with 567BC engines, 4-stack exhausts, paper air-intake filters, 26-L brakes (their original 6-BL brakes made them operationally incompatible with locomotives fitted with 24-RL brakes). All but the first locomotive rebuilt had their front (short) hood reduced in height for improved crew visibility. The IC designated these rebuilt locomotives GP8. The IC acquired many second-hand units through Precision National Corporation (PNC), and then started offering their GP8/GP10 rebuilding services to other railroads through their Paducah Shops (note, a rebuilt "Paducah Geep" was designated a GP8 or GP10 depending on the power output of the rebuilt engine, not necessarily what it was rebuilt from).

In 1960 the Alaska Railroad purchased a dozen GP7Ls from the US Army and rebuilt eleven of them in 1965 with low short hoods for better visual clearance. One of the ten remaining Alaska GP7s was rebuilt by Morrison-Knudsen in 1976. The other nine units were rebuilt at Paducah Shops in 1976-1977.

Canadian Pacific Railway rebuilt their GP7 fleet in the early 1980's as GP7u units for yard service, including a chopped short hood, new numberboards and front cab windows, and upgrading the 567B prime movers with 645 power assemblies and to "BC" engine block specs (some upgraded with 567C engine blocks out of retired F-units).



Georgia Railroad 1026, an EMD GP7, on permanent display in Duluth, Georgia.

(Harvey Henkelmann, Attribution, via Wikimedia Commons)



Preservation

Numerous GP7s have been preserved on tourist lines and in museums. Holders include:

  • Conway Scenic Railroad
  • Florida Railroad Museum
  • Illinois Railway Museum
  • Lebanon Mason Monroe Railroad
  • Minnesota Transportation Museum
  • Tennessee Valley Railroad Museum
  • United Railroad Historical Society of New Jersey
  • Western Pacific Railroad Museum
  • Grand Canyon Railway
  • Toronto Railway Museum
  • Southeastern Railway Museum
  • Hocking Valley Scenic Railway
  • Grapevine Vintage Railroad
  • Conrad Yelvington Distributors Railroad
