An ALCO PA-4 (rebuilt by M-K) of the Delaware and Hudson Railroad in April 1978.

(Norton Clark, Public domain, via Wikimedia Commons)

ALCO PA DIESEL-ELECTRIC LOCOMOTIVE

The ALCO PA was a family of A1A-A1A diesel locomotives built to haul passenger trains. The locomotives were built in Schenectady, New York, in the United States, by a partnership of the American Locomotive Company (ALCO) and General Electric (GE) between June, 1946 and December, 1953. Designed by General Electric's Ray Patten (along with their ALCO FA cousins), they were of a cab unit design; both cab-equipped lead A unit PA and cabless booster B unit PB models were built. While externally the PB models were slightly shorter than the PA model, they shared many of the same characteristics, both aesthetically and mechanically. However, they were not as reliable as EMD E-units.

ALCO's designation of P indicates that they were geared for higher speeds and passenger use, whereas the F designation marks these locomotives as being geared primarily for freight use. However, beyond this, their design was largely similar - aside from the PA/PB's both being larger A1A-A1A types with an even more striking nose - and many railroads used PA and FA locomotives for both freight and passenger service.

Although the majority of the PAs and PBs have been scrapped, six examples have survived. Five PAs are now preserved in railroad museums, while a converted PB still remains in service as a power car.

A pair of ALCO PA-1s of the Santa Fe Railway in March 1968.

(Drew Jacksich from San Jose, CA, California Republic, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons)

Service history

There were two models of PAs: the 2,000 horsepower (1,500 kW) PA-1/PB-1, which was built between September 1946 and June 1950, and the 2,250 horsepower (1,680 kW) PA-2/PB-2, which was built between April, 1950 and December, 1953.

The PAs, as well as their cousins, the ALCO FAs, were born as a result of ALCO's development of a new diesel engine design, the Model 244. In early 1944, development started on the new design, and by November 1945 the first engines were beginning to undergo tests. This unusually-short testing sequence was brought about by the decision of ALCO's senior management that the engine and an associated line of road locomotives had to be introduced no later than the end of 1946.

In preparation for this deadline, by January, 1946, the first 16-cylinder 244 engines were being tested, and, while a strike delayed work on the locomotives, the first two PA units were released for road tests in June, 1946 for testing for one month on the Lehigh Valley Railroad. After these first tests were completed, the locomotives returned to the factory for refurbishment and engine replacement.

In September, 1946, the first production units, an A-B-A set of PA1s in Santa Fe colors, numbered Nos. 51L, 51A and 51B, were released from the factory and sent to New York's Waldorf-Astoria Hotel, which had a private railroad siding, for exhibition before being launched into road service. This set was repowered in August, 1954 with EMD 16-567C engines rated at 1,750 hp (1,300 kW). This EMD repowering of the PAs was economically unfeasible, and the remaining Santa Fe PAs retained their 244 engines.

Four PA-1s previously operated by the Santa Fe were sold to Delaware and Hudson Railway in 1967. In 1974-1975, they were rebuilt for the D&H as PA-4s by Morrison-Knudsen and equipped with ALCO's 251 V-12 engines. Under D&H ownership, they were used by Amtrak for the Adirondack. (Amtrak itself only purchased EMD E- and F-units from the railroads whose service it replaced for its diesel roster, and never owned any PAs.) They were used by the Massachusetts Bay Transit Authority in the late 1970s, then by Ferrocarriles Nacionales de México in 1978–81.

Fans deemed the PA one of the most beautiful diesels and an "Honorary Steam Locomotive", as noted by Professor George W. Hilton in a book review in September, 1968 Trains Magazine. When accelerating, until the turbocharger came up to speed, thick clouds of black smoke would pour from the exhaust stacks due to turbo lag. Photographing a moving PA while smoking became a prime objective of railfans.

NdeM Alco PA No. DH-19 locomotive in the courtyards at the Museo Nacional de los Ferrocarriles Mexicanos in Puebla.

(Carlos González Torres, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons)

Original owners

Foreign sales

The PA-2 units sold to the 1,600 mm (5 ft 3 in) broad gauge Companhia Paulista de Estradas de Ferro of São Paulo State in Brazil were equipped with a bar pilot and solid horizontal steel pilot beam. One of these locomotives survives.

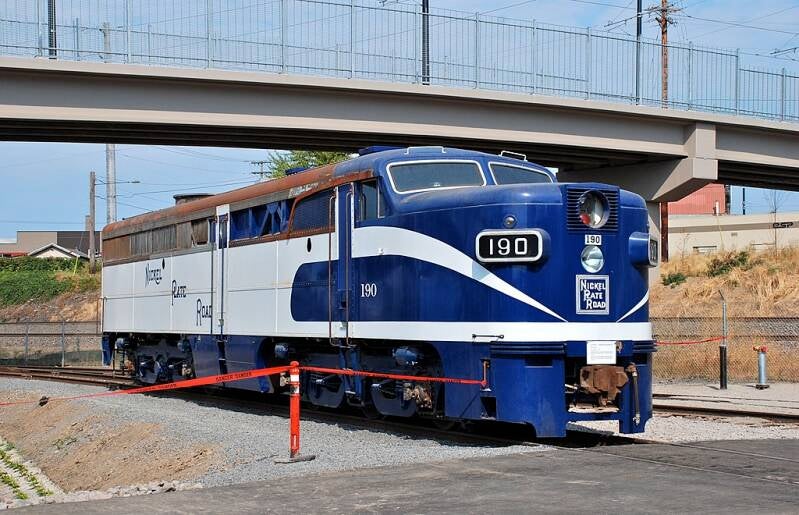

Nickel Plate Road 190 at the Oregon Rail Heritage Center. This unit was later moved to Scranton, Pennsylvania in 2023.

(Steve Morgan, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)

Surviving examples

Five PA units and one converted PB unit survive.

One surviving unit, No. 600, is from the order of three broad gauge units sold to Companhia Paulista de Estradas de Ferro in Brazil. It exists at the Companhia Paulista Museum at Jundiai, São Paulo as a shell with no prime mover and no side panels. A restoration began in 2001 but has not been completed.
All four Delaware & Hudson-operated PA-4s have survived, with two being in the United States, and the other two in Mexico.
From 1981 to 2000, No. 16 and No.18 remained stored in Empalme, Sonora, Mexico. In 2000, the Smithsonian Institution and rail preservationist Doyle McCormack obtained the units and brought them back to the United States.
No.16, which was heavily damaged in a derailment while in Mexico, was planned to be cosmetically restored into its original "Warbonnet" colors for the Smithsonian Institution. The unit was acquired by the Museum of the American Railroad in 2011 and transported to the museum's new site in Frisco, Texas. Since then, it has been under restoration, with plans to return it to its original Warbonnet appearance and original number of ATSF 59L.
No.18 was owned by Doyle McCormack and has been undergoing restoration since 2002. It has been restored as Nickel Plate Road 190, a recreation of the first locomotive McCormack got to ride. The locomotive was moved to the Oregon Rail Heritage Center, in Portland, Oregon in 2012, where restoration work continued to take place. In March 2023, it was announced that the Genesee Valley Transportation Company would purchase the locomotive, with plans to restore it to operation for excursion use. It arrived in Scranton, Pennsylvania in May 2023.
No.17 and No.19 are preserved at the National Museum of Mexican Railways in Puebla. Unit DH-17 (former D&H No. 17) was painted in the classic Southern Pacific Daylight colors, but as of February 2010 had been painted over in primer.
Ex-Denver and Rio Grande PB-1 6002 was converted to a steam generator car in October 1965; it gained Blomberg B trucks in 1980. It was sold to Ansco in late 1987 for service on the Ski Train, and later sold again in 2007 to the Algoma Central Railway.

Erie-Lackawanna No. 860, an Alco PA, with The Twilight passenger train ready to depart Hoboken N.J. passenger terminal on September 3, 1965.

(Roger Puta, courtesy Marty Bernard, railfan 44, Public domain, via Wikimedia Commons)

ALCO PA1/PB1 PA2/PB2 Overview

Type and origin
Power type: Diesel-electric
Builder: Partnership of American Locomotive Company (ALCO) and General Electric (GE)
Model: PA1, PB1, PA2, PB2
Build date: June 1946 – December 1953
Total produced: 297
Specifications
Configuration:
​• AAR A1A-A1A
Gauge: 4 ft 8+1⁄2 in (1,435 mm) standard gauge; 1,600 mm (5 ft 3 in), Brazil
Length: 65 ft 8 in (20.02 m)
Locomotive weight: 306,000 lb (138,799 kg; 139 t)
Prime mover: Alco 244G V16
Engine type: V16 Four-stroke diesel
Aspiration: Turbocharger
Displacement: 10,688 cu in (175.14 L)
Generator: DC
Traction motors: 4x GE 746 or 752 DC traction motors
Cylinders: 16
Cylinder size: 9 in × 10+1⁄2 in (229 mm × 267 mm)
Transmission: Diesel-electric
Locomotive brake: Independent air.
Optional: Dynamic brakes
Train brakes: Air
Performance figures
Maximum speed: 117 mph (188 km/h)
Power output: 2,000 hp (1,490 kW) — PA-1/PB-1; 2,250 hp (1,680 kW) — PA-2/PB-2
Tractive effort: 51,000 lbf (226.86 kN)
Career
Class: Erie- PA1- PA-20 PA2- PA-22 NH- PA1- DER-3a NYC- PA1- various PB1- various PA2- DPA-4a PRR- PA1- AP20 P&LE- PA1- DPA-2c PA2- DPA-14b WAB- PA1- D20
Locale: North America, Brazil
Disposition: Three preserved, two under restoration, one converted to steam generator car, remainder scrapped.
