UP 61, one of only three C855 units built. Photograph by David Rider.
(Fair use, see page https://en.wikipedia.org/wiki/File:ALCOC855A.jpg)
ALCO CENTURY 855 DIESEL-ELECTRIC LOCOMOTIVE
The ALCO Century 855 was a model of 5,500 hp (4,101 kW) diesel-electric locomotive built in 1964 by the American Locomotive Company for the Union Pacific. The locomotive was notable for being ALCO's most powerful diesel-electric locomotive and, at the time, the most powerful diesel locomotive ever built, being surpassed by the 6,600-horsepower (4,922-kilowatt) EMD DDA40X in April 1969.
The Century 855 was designed and built specifically for Union Pacific, which was in need of very high horsepower locomotives for its Overland Route through the Rocky Mountains. Despite its impressive power output, all three examples of the class were scrapped by early 1972 due to mechanical unreliability.

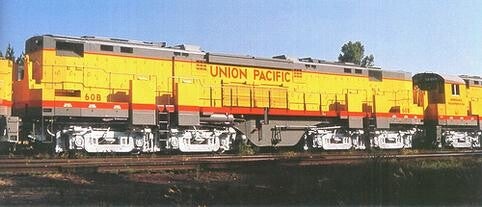

Union Pacific 60B, the only Century 855B built. Photograph by David Rider.
(Fair use, see page https://en.wikipedia.org/wiki/File:ALCOC855B.jpg)
History
Powered by a pair of 16 cylinder ALCO 251C diesel engines, and rated at 5,500 hp (4,101 kW), it was ALCO's answer to the EMD DD35A and the GE U50. The C855 rode on four two-axle trucks, grouped in pairs linked by span bolsters, giving a wheel arrangement of B+B-B+B. The trucks and bolsters were similar to those under UP's earlier turbine locomotives. Only two A units and one B unit were built, all for the Union Pacific, which had also requested double-engine locomotives from EMD and GE in order to replace the turbines, which had become uneconomical to operate.
Union Pacific also wished to reduce the number of locomotives needed on a consist, to keep in line with their allowable gross weight limit. By consolidating several locomotives into one or two, this allowed them to lower the axle load on the rails, but to stay within the limits placed by the company. They spent their lives in the general freight pool at North Platte; however, constant shutting down due to overheating and poor performance with its twin prime movers led to their early retirement and eventual scrapping by February 1972, after only being in service for less than eight years.
Overview
Type and origin
Power type: Diesel-electric
Builder: American Locomotive Company (ALCO)
Serial number: 84730–84731 (A units), 84732 (B unit)
Model: DL855, DL856
Total produced: 3 (two A units, one B unit)
Specifications
Configuration:
• AAR B+B-B+B
Gauge: 4 ft 8+1⁄2 in (1,435 mm)
Length: 86 ft (26.21 m)
Locomotive weight: 551,400 pounds (250,111 kg)
Fuel capacity: 6,000 US gal (5,000 imp gal; 23,000 L)
Prime mover: Alco Dual 251C
Engine type: Dual V16 diesel
Generator: Direct Current GT598 generator
Traction motors: DC traction motors
Cylinders: 32 (2 x 16)
Transmission: Electric
Performance figures
Power output: 5,500 hp (4,101 kW)
Career
Operators: Union Pacific
Numbers: 60–61, 60B
Locale: North America
Delivered: July 1964
Disposition: All 3 scrapped by 1972
Above information pertains to cab unit only.
