2-10-0 DECAPOD STEAM LOCOMOTIVE

Under the Whyte notation for the classification of steam locomotives, 2-10-0 represents the wheel arrangement of two leading wheels on one axle, ten powered and coupled driving wheels on five axles, and no trailing wheels. This arrangement was often named Decapod, especially in the United States, although this name was sometimes applied to locomotives of 0-10-0 "Ten-Coupled" arrangement, particularly in the United Kingdom. Notable German locomotives of this type include the war locomotives of Class 52.

These locomotives were popular in Europe, particularly in Germany and Russia; British use of the type was confined to the period during and after World War II. In the United States, the 2-10-0 was not widely popular but was a favorite of a small number of railroads which operated mostly in mountainous terrain. Among these was the Erie Railroad, a major Chicago to New York trunk line railroad, and the Pennsylvania Railroad, whose heavily graded routes crossed the Allegheny Mountains.

The 2-10-0's main advantage was that five out of six of its axles were powered, meaning almost all the weight was available for traction rather than being distributed over pilot and trailing wheels. The long rigid wheelbase caused problems on tightly curved track, so blind drivers were the norm, either on the central axle, and/or on the second and/or fourth axles. Often lateral motion devices were attached to the leading drive axle.

The wheel arrangement's disadvantages included the firebox size restriction caused by the lack of trailing wheel. This meant the firebox was fitted in between the wheels (common on earlier locomotives) and was long and narrow, or if mounted above the driving wheels, was wide and long but shallow. Many locomotives chose the latter option. A firebox mounted over the drivers also restricted the diameter of the driving wheels, which in turn limited speed. As with the Consolidation (2-8-0), "chopping" at speed ensured a rough ride for the crew due to instability caused by the wheel arrangement. In fact, backing any locomotive without a trailing axle was restricted to under twenty miles per hour or less. Most 2-10-0s were not operated at speeds greater than 50 mph (80 km/h).

The type operated as freight engine, although locomotives in Germany and the United Kingdom proved capable of hauling passenger trains.

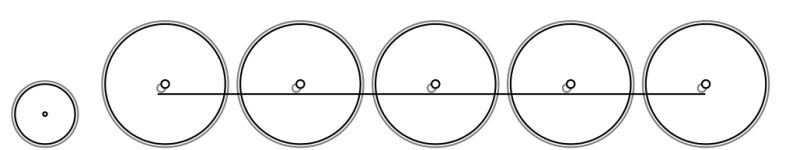

Schematic of 2-10-0 steam locomotive wheel arrangement. Front of locomotive on left.

(Gwernol, Public domain, via Wikimedia Commons)

Pennsylvania Railroad class PRR I1s, the most successful class of such locomotives in North America.

Note the firebox placed above the rear drivers. Baldwin builders' photo, 1922.

(Public domain, https://en.wikipedia.org/wiki/File:PRR_I1s_4300.jpg)

Useage

United States

The first Decapods were built for the Lehigh Valley Railroad in the late-1860s. They proved too rough on the track because of their long coupled wheelbase. No more followed for 19 years, until the Northern Pacific Railway bought two for use on the switchbacks over Stampede Pass, while the 2-mile (3.2 km) tunnel was being built. In low-speed service where high tractive effort was critical, these Decapods were successful. Small numbers of other Decapods were built over the next twenty years, mostly for service in steeply graded mountainous areas where power at low speeds was the requirement. The type did not prove as popular as the successful Consolidation (2-8-0) type. Among Decapod users was the Atchison, Topeka and Santa Fe Railway. The engines were tandem compounds but their ongoing reversing limitations became the genesis of the 2-10-2 wheel arrangement.

The first boost in the number of Decapods occurred when Imperial Russia ordered approximately 1,200 Decapods from American builders during World War I. When the Bolshevik revolution occurred in 1917, 857 had already been delivered, but more than 200 were either awaiting shipment or were in the process of construction. These stranded locomotives were adopted by the United States Railroad Administration (USRA), the body created by the Government to oversee and control the railroads during the War, converted to American standards, and put to use on American railroads. Small and light-footed, these Russian decapods proved popular with smaller railroads, and many of them remained in service long after the USRA's control of the railroads ceased. Many indeed lasted until the end of steam on those railroads.

Swengel suggested the 2-10-0 arrangement was 'obsolete' by 1916, when the Pennsylvania Railroad commenced an experiment with a 2-10-0 locomotive at its Juniata plant. Most 10 coupled engines constructed for U.S. railroads during World War I were of the USRA 2-10-2 arrangement, but the PRR committed to 122 of the 2-10-0s. Swengel argued this commitment to the 2-10-0, nicknamed "Deks", was controversial even in 1916 and was more so in 1922 when the PRR placed additional orders. The PRR was soon the biggest user of Decapods in the United States. The type was ideally suited to the Pennsy's heavily graded Allegheny Mountains routes, which required lugging ability according to tractive effort, not speed according to horse power.

The PRR bought 598 2-10-0s including 123 built at its own shops. In one of the largest locomotive orders ever, the rest came from the Baldwin Locomotive Works. The PRR 2-10-0s weighed 386,100 lb (175.1 t) and developed about 90,000 lbf (400.3 kN) of tractive effort with an axle loading of over 70,000 lb (32 t). The engines steamed at 250 psi (1.72 MPa) and had a relatively large superheater. The grate area of about 70 sq ft (6.5 m2) was on the small side, but a mechanical stoker partly compensated for this.

The PRR decapod, class I1s, was unlike the Russian decapod; it was huge, taking advantage of the PRR's heavy trackage and high axle loading, with a fat, free-steaming boiler that earned the type the nickname of 'Hippos' on the PRR. Two giant cylinders (30½ x 32 inch) gave the I1s power and their tenders permitted hard and long workings between stops. They were unpopular with the crews, for they were hard riding. The last operations on the PRR were 1957.

A small number of other Decapods were ordered by other railroads; the I-2 Decapods built for the Western Maryland Railway were the largest ever built, at almost 420,000 lb (190 t) weight, and are a notable exception to the rule of thumb for the comfort of the ride on a 2-10-0 wheel arrangement, crews said the engines cruised smoothly up to 50 mph without becoming a rough ride. (After the running gear was redesigned by the WM) The WM's I-2 are also noted as the strongest Decapods ever built, at 96,315 lbs of tractive effort. (Not to be confused with the 10 Russian Decapods the WM held in their roster, which were standard Russian Decapods aside from heavier steel frames the WM used to replace the original cast iron frames, the new frames also made the WM Russian Decapods 2 inches longer than other Russian Decapods)

Baldwin developed two standard 2-10-0s for railroads with low axle-load requirements.

Thirteen Decapod locomotives survive in the US, including two Baldwin standards, six Russian Decapods and one PRR I1. Two, Great Western 90, a Baldwin Decapod at the Strasburg Rail Road, and Frisco 1630, a Russian Decapod at the Illinois Railway Museum, are operational. One Decapod survives as a static exhibit at the North Carolina Transportation Museum in Spencer, North Carolina (Seaboard Air Line 2-10-0 No. 544).

Preserved Decapods in the United States

544 is on display at the North Carolina Transportation Museum - Spencer, NC.
1615 is on display at Missile Park in Altus, OK.
1621 is on display at the National National Museum of Transportation - St. Louis, MO
1625 is on display at the Museum of the American Railroad - Frisco, TX
1630 is operated by the Illinois Railway Museum - Union, IL.
1632 is on display at the Belton Grandview & Kansas City Railroad - Belton, MO.
90 is operated by Strasburg Railroad - Strasburg, PA.

Proposed/Unbuilt (US)

L.D. Porta proposed a 2-10-0, triple expansion Modern steam locomotive for fast freight work based on his previous works.

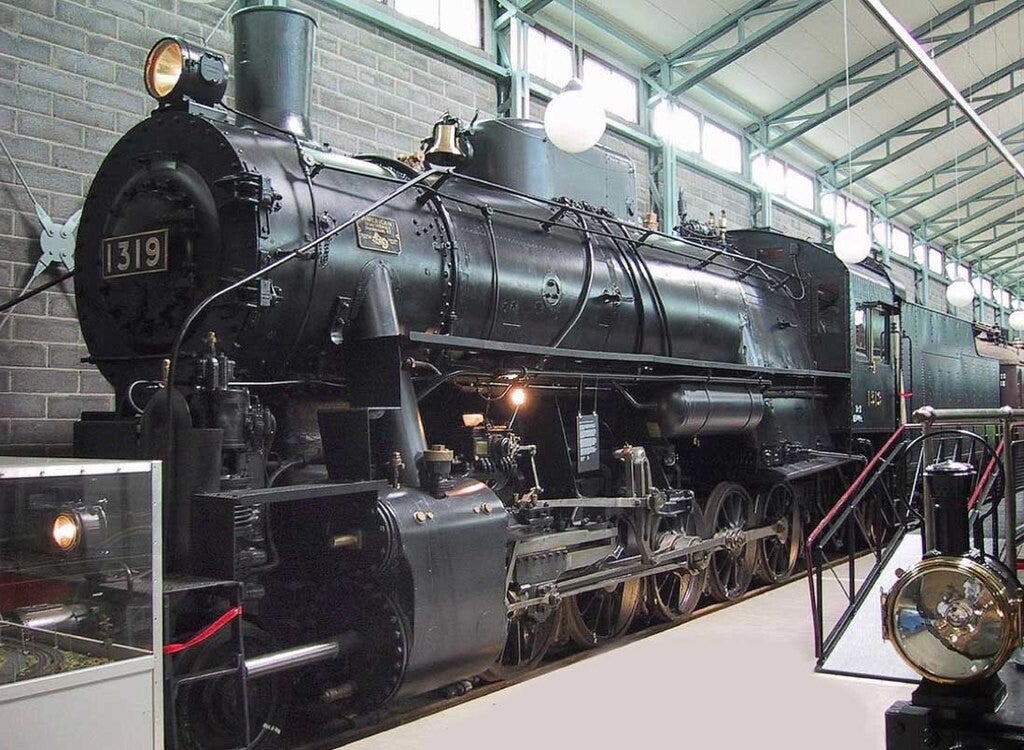

ALCO No 75214 Tr2 1319 at the Finnish Railway Museum.

(Photo by J-E Nyström, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)

Finland

The State Railroads of Finland purchased 20 American Decapods after WWII - these were originally built for the Soviet Union, but never delivered to them. Of the 20 engines, 10 were made by Baldwin, 10 by Alco. Since they were originally built for the USSR, they had the correct gauge for Finland, too (1,524 mm (5 ft) exactly). One (Alco # 75214, 1947) is preserved at the Finnish Railway Museum in Hyvinkää, Finland. The Finnish designation was Tr2.

The locomotive was nicknamed Truman in Finland. It was used for hauling heavy freight trains.

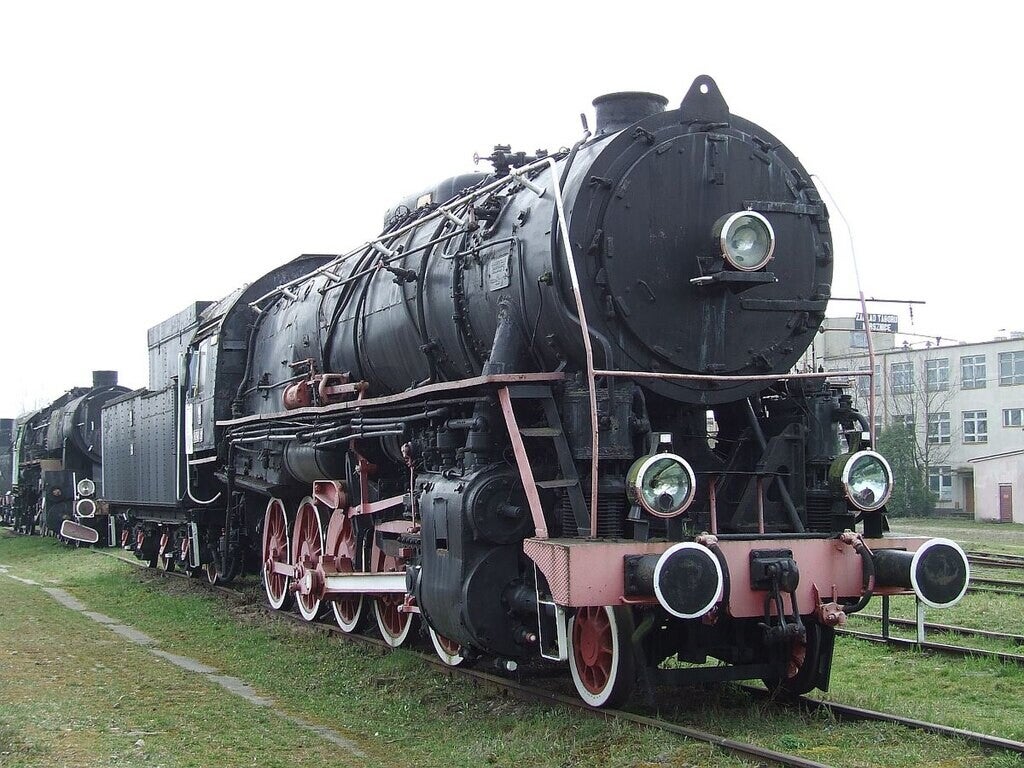

Preserved PKP class Ty246.

(Hiuppo, CC BY 3.0 <https://creativecommons.org/licenses/by/3.0>, via Wikimedia Commons)

Poland

Between early 1920s and 1958 Polish industry delivered to PKP some 1200 decapods of classes Ty23, Ty37, Ty45 and Ty51. PKP also operated German decapods BR 52 (Ty2) and BR 42 (Ty3), as well as American ones (Ty246, nicknamed "Trumman"). They were used to work the heaviest goods trains.

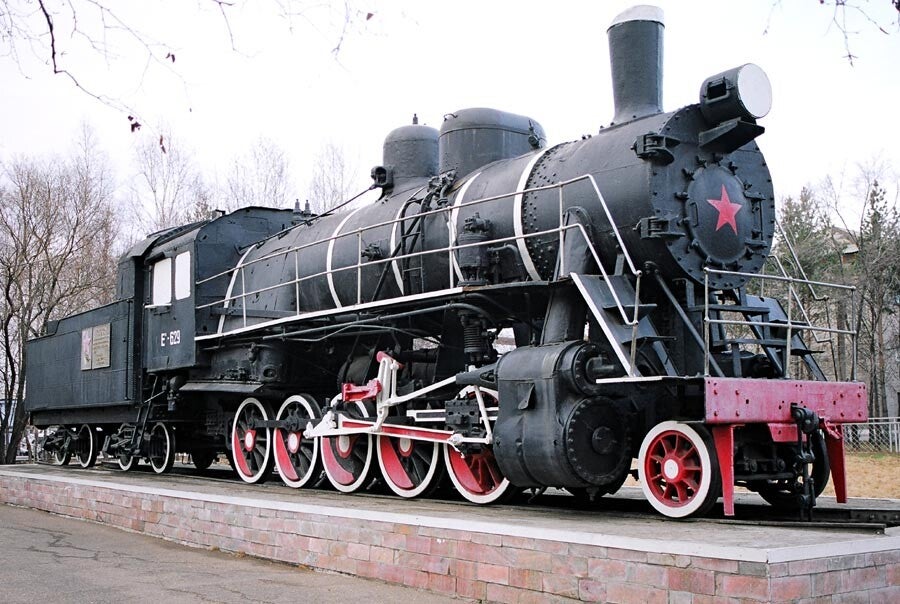

Steam Locomotive YeL 629 in Ussuriysk.

(Zimin.V.G. (Зимин Василий Геннадиевич, Zimin Vasili Genadievich)at ru.wikipedia, CC BY 1.0 <https://creativecommons.org/licenses/by/1.0>, via Wikimedia Commons)

Soviet Union

2-10-0 were fairly common freight locomotives in the former Soviet Union. They came from several sources: US imports (class Ye (Russian: серия Е), built by ALCO and Baldwin, respectively), German war trophy DRB 52 class locomotives (what became the Soviet TE-series) and locally built. The locally built 2-10-0 locomotives were represented by some TE (built from captured German parts), SO (Sergo Ordjonikidze) and L (Lebedyanski)–series locomotives. The L-series locomotives were one of the more advanced steam locomotives built in the former Soviet Union. They used an automatic stoker to feed coal and had a relatively low axle load (18 tonnes or 40,000 lb) to be compatible with the war-torn railroads of the former Soviet Union. Several examples of these locomotives are still preserved in working order.

There is a 2-10-0 Lebedyanski series locomotive L 4657, marooned in a siding at Port Baikal.

Overview

Equivalent classifications
UIC class: 1′E
French class: 150
Turkish class: 56
Swiss class: 5/6
Russian class: 1-5-0
First known tender engine version
First use: 1886
Country: United States
Locomotive Numbers: 1 and 2
Railway: Northern Pacific Railroad
Designer: Burnham, Parry, Williams & Company
Builder: Burnham, Parry, Williams & Company
Evolved from: 0-10-0
Evolved to: 2-10-2
Benefits: Better stability than the 0-10-0
Drawbacks: Small firebox
