0-8-8-0 ANGUS STEAM LOCOMOTIVE
In the Whyte notation for classifying the wheel arrangement of steam locomotives, an 0-8-8-0 is a locomotive with two sets of eight driving wheels and neither leading wheels nor trailing wheels. Two sets of driving wheels would give far too long a wheelbase to be mounted in a fixed locomotive frame, so all 0-8-8-0s have been articulated locomotives of the Mallet type, whether simple or compound. In the UIC classification, this arrangement would be, refined to Mallet locomotives, (D)D. The type was sometimes called Angus in North America.
Other equivalent classifications are:
- UIC classification: DD (also known as German classification and Italian classification)
- French classification: 040+040
- Turkish classification: 44+44
- Swiss classification: 4/4+4/4

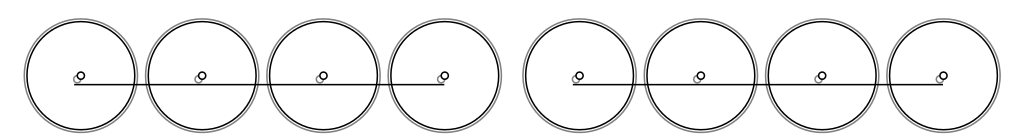

Diagram of the 0-8-8-0 Wheel Arrangement. Front of locomotive on left.
(Gwernol, Public domain, via Wikimedia Commons)
Usage
The lack of leading and trailing wheels to assist the tracking and stability of the locomotive means that the 0-8-8-0 type is not suited to high speeds. The vast majority were used as very heavy switcher locomotives (generally for hump yard work), transfer locomotives for hauling cuts of cars between rail yards, or pushers for assistance on grades.
Most locomotives of this arrangement were built and served in North America, but there were exceptions. The Bavarian State Railways (K.Bay.St.B) built a total of 25 0-8-8-0T tank locomotives of class Gt 2x4/4 between 1913 and 1923, classified after unification of Germany's railway systems as class BR96. These worked trains over heavily graded stretches of line, mostly as pushers and were the largest locomotives in Europe when introduced.
Photo of the Delaware and Hudson's 4-6-6-4 locomotive No. 1605 and crew.
(Leighton & Valentine, New York, Public domain, via Wikimedia Commons)
Popular culture
O gauge models of Erie class L-1 Camelback locomotives been made by both MTH Electric Trains and Sunset Models.
O gauge models of PRR Class CC2 0-8-8-0s were made by Lionel.
HO scale brass importers of the L-1 Camelback locomotives include NJ Custom Brass and Overland Models.
Bavarian locomotives have been modeled in HO gauge by Marklin/Trix and by Rivarossi.
The lone Pennsylvania Class CC1s 0-8-8-0 experimental Steam Locomotive.
(Unknown photographer, Public domain, via Wikimedia Commons)
An Erie L-1 camelback 0-8-8-0 at Port Jervis, NY, 1911.
(Morven, Public domain, Wikimedia Commons)
